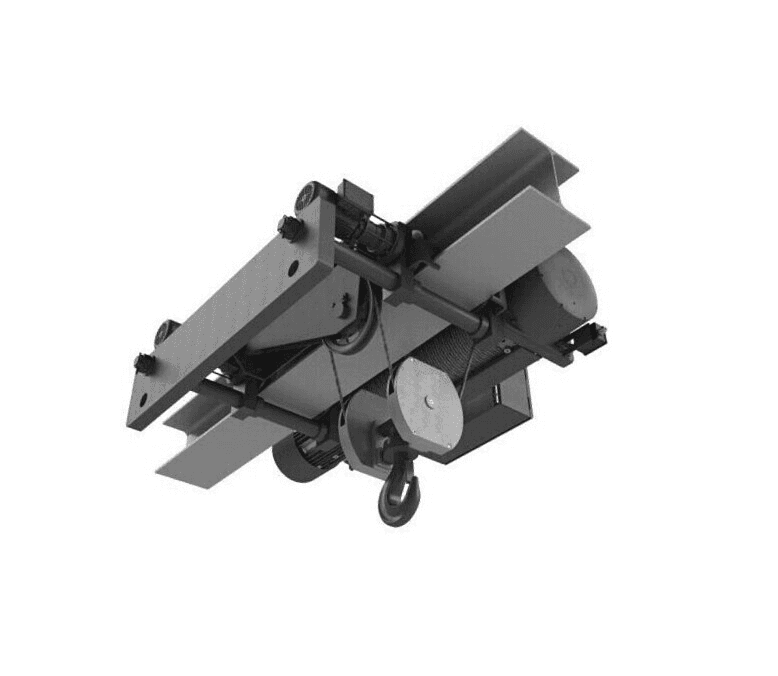

Electric Wire Rope Hoist – Low Headroom Type – MX Series

Description

• A low headroom hoist — now the most demanded feature, according to our order data.
• Maximum capacity up to 20,000 kg.
• The hoist is set down on the trolley, which runs on the lower flange of the beam.
• Supporting bars with circular cross-sections hold the hoist in the set-down position.
• The most common solution for single girder cranes where optimised working space below the hook is required. Compact design for maximum space utilisation.
• The trolley is composed of an idler wheel assembly and a drive wheel assembly, each with two wheels of machined pressed steel with spherical bearings.
• The wheels of the drive wheel assembly are opposing, have a crown gear wheel and are connected by a transmission bar.
• The steel supporting plates are adjustable along the bar and have an anti-derailment device.
