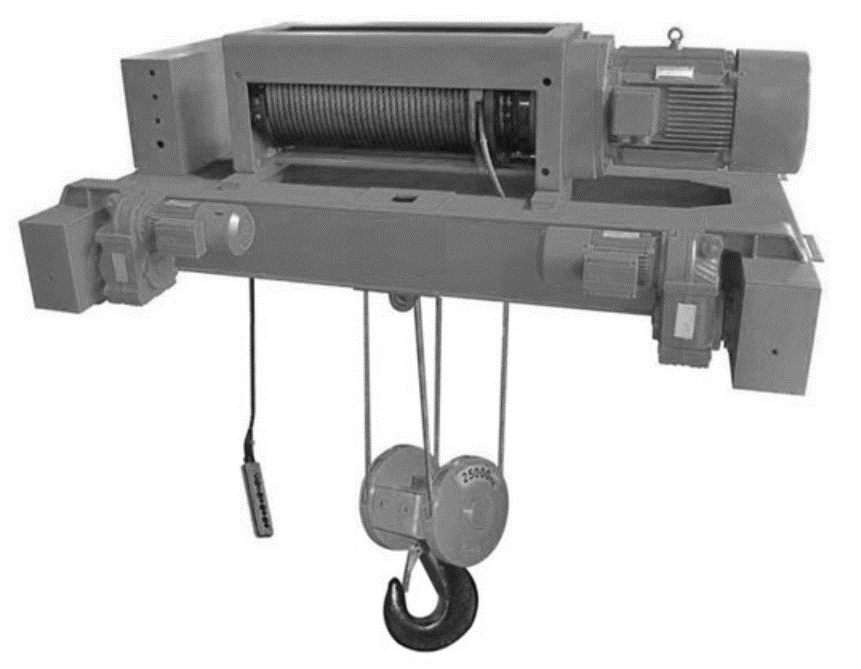

Electric Wire Rope Hoist with Double Girder Trolley – DMX Series

Description

• Maximum capacity of 20,000 kg for hoists with 2 or 4 rope falls and a double girder trolley span of 1,000 mm or 1,200 mm.
• Maximum capacity of 60,000 kg for hoists with a double girder trolley span of 1,400 mm, 2,240 mm or 2,800 mm.
• Electric double girder trolleys travel on top of rails fitted on the crane beams, allowing the maximum hook path.
• One or two hoists on one trolley.
• Parallel or perpendicular alignment to the main girder, depending on the building design and application.
• Option for tandem work of two hoists or two trolleys — suitable for transporting long materials.
• The wheels, pressed from carbon steel, rotate on permanently lubricated bearings.
• The trolley has an anti-derailment device.
• The trolley motor is a conical self-braking type with progressive start-up, and can be supplied with one travel speed of 8, 10, 16 or 20 m/min, or two travel speeds of 16/4 or 20/5 m/min.
